hinge for big high quality pivot doors

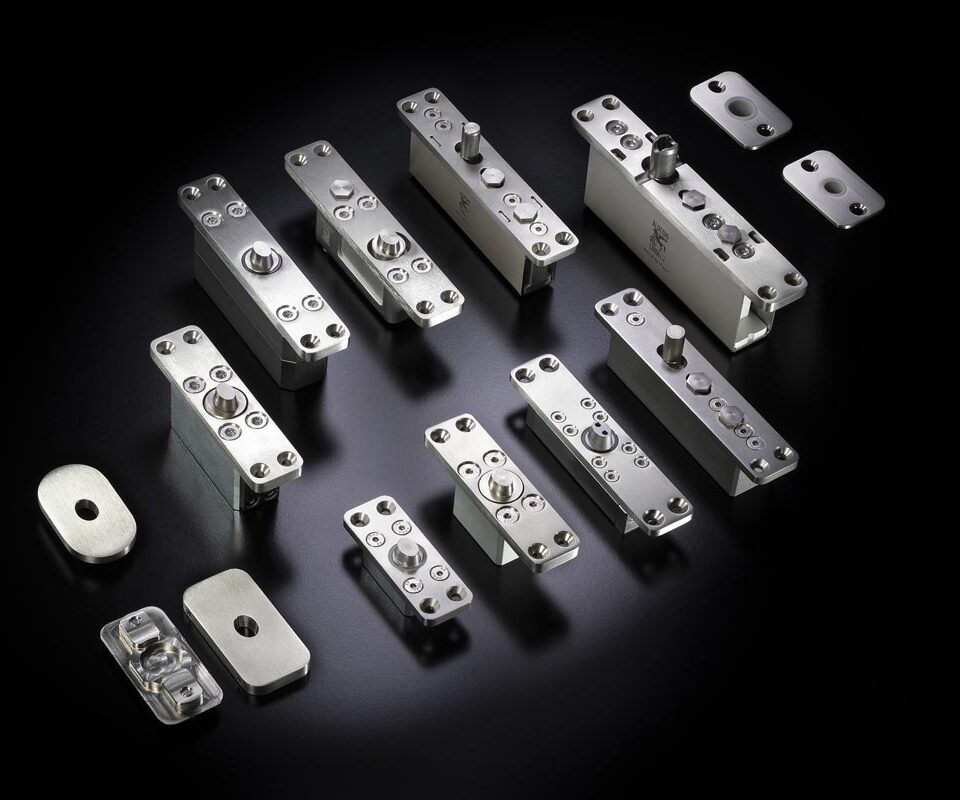

The new hinge for big pivot doors, designed and built by Aldeghi Luigi Spa, can be used with doors weight up to 500 kg. The two elements that make up the system are completely embedded in the door, respecting the aesthetics. To the floor and ceiling are fixed the supports of the pins, consisting of small plates and are therefore practically invisible. Easy installation and simple adjustment of the door axiality, make it the ideal choice for heavy, high quality materials built doors, such as wood, metal and glass. The different systems have the upper element in common, while they differ from each other in the lower element, which is available in different versions, with different characteristics.
Adjustable upper hinge + Adjustable lower hinge for aligning of the door
Floor plate
Adjustable upper hinge + Lower hinge
Floor plate
Adjustable upper hinge + Lower hinge
Adjustable floor plate
Adjustable upper hinge + Low profile lower hinge
Floor plate
Adjustable upper hinge + Lower spring profile hinge with door retainer every 90° and 20° return before the stop position
Adjustable floor plate
Adjustable upper hinge + Lower spring hinge with door retainer every 90°
Adjustable floor plate
Adjustable upper hinge + Lower spring profile hinge with door retainer every 90° and 20° return before the stop position
Adjustable floor plate
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge and to adjust vertical aligning acting on lower hinge. The floor plate is fixed. Door rotation is free on 360°.
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge. The floor plate is fixed. Door rotation is free on 360°.
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge. The floor plate is adjustable and allows the aligning between door and jamb from handle side. Door rotation is free on 360°.
NEW
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge.
The lower hinge is characterized by a particularly low profile which facilitates its insertion into doors with a lower profile.
The floor plate is adjustable and allows the aligning between door and jamb from handle side. Door rotation is free on 360°.
NEW – COMING SOON
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge. The floor plate is adjustable and allows the aligning between door and jamb from handle side. Door rotation is free on 360°, with slow moving stop every 90 and 20° return before the stop position. The particularly thin profile of the lower element makes it suitable for lower profile doors.
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge. The floor plate is adjustable and allows the aligning between door and jamb from handle side. Door rotation is free on 360°, with slow moving stop every 90°.
KIT composed by upper and lower hinge. Pin goes up and down , adjusting it with the supplied special key, so to allow the correct installation of the door. It’s possible to adjust the parallelism of the door acting on upper hinge. The floor plate is adjustable and allows the aligning between door and jamb from handle side. Door rotation is free on 360°, with slow moving stop every 90 and 20° return before the stop position.
